Product Dimensions 4.53"h x 2.72"w x 1.68"d

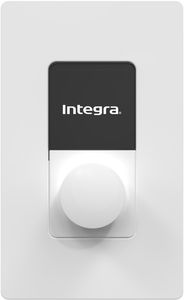

The Integra ZC1 Zone Controller is an optional wall panel, compatible with all Integra Professional Amplifiers, that streamlines the user experience by providing real-time device syncing with intuitive design and a secure 4-digit passcode.Read More
The Zone Controller is a wall-mounted device designed for the remote control of volume level and input source selection, of amplifiers
Zone Controller devices are only compatible with amplifiers running firmware version 1.6.0 or later
Dimensions (H x W x D): 4.53 x 2.72 x 1.68in
General Specs | |
| Product Weight (lbs.) | 0.27 |
| Color | White |
| Depth (in.) | 1.68 |
| Width (in.) | 2.72 |
| Height (in.) | 4.53 |
| Color/Finish Name | White |
| Compatible Model Sku | 8500DSP, 8125DSP, 4500DSP, 4125DSP |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Smart Compatible | Yes |
| Touchscreen | No |
Technical Specifications | |
| Operating Temperature Range | 0-40°C (32-104°F) |
| Display Screen Dimension (excluding black border) | 27.72mm x 27.72mm |
| Display Screen Area (excluding black border) | 768.4sqmm |
| Display Screen Resolution | 240 x 240 pixels |
| Display Screen Type | RGB, Transmissive / Normally Black |
| Display Screen Material | High gloss polished transparent acrylic |
| Exterior & Mechanical Parts Material | Plastic (ABS-PC) |
| Base Construction & Shield Material | Pre-galvanized steel |
| Power Consumption | PoE Class 1 / 3.84 Wmax |
| Power Supply | Power to the RJ45 Ethernet port on the rear of device using a category 5e cable (or faster STP) with the use of a standard PoE switch, or PoE injector |
| Standby Modes | 6 settings available: 30 secs, 2 mins, 5 mins, 15 mins, 30 mins, 60 mins |
| Connection & Data Protocol | RJ45, proprietary over CAT 5e (or faster STP) |
| Maximum Cable Length (CAT 5e) | 100m (328ft) |
| IP Rating | IP 30 |
